Crack Repair Epoxy Fillers

Crack Repairs - solvent free, non shrink resins

Property Repair Systems is OPEN FOR BUSINESS - 01626 872886

Speak to real people about crack filling

Click here for our Home Page





Repair cracked wall, cracked floor and cracked timbers - using Epoxy Resins - no solvents, permanent structural crack repairs.

How to repair cracks using crack repair resins, crack fillers, Stitching Kits, Injectors and Injection Resins - fixing cracks in brickwork and concrete walls and floors.

Click here to see products, check prices and Order in our Resins Shop


CRACK FILLER REPAIR BY JOB - problems that we can help you solve using epoxies

Concrete Floors

Hairline Crack Filler Injection - direct method from a cartridge nozzle

Hairline Crack Filler Injection - using bang-in plastic injectors

Cracked Concrete Floors - Crack Filling - direct from a cartridge nozzle

Cracked Concrete Floors - Injection - using bang-in plastic injectors

Big cracks with holes in Concrete Floors - Filling

Cracks with cavities behind concrete - filling by injection - using bang-in plastic injectors


Concrete Walls

Cracked Concrete - Crack Filling - direct filling from a cartridge nozzle

Cracked Concrete Injection - using bang-in plastic injectors

Hairline Crack Filler Injection - direct method from a cartridge nozzle

Hairline Crack Filler Injection - using bang-in plastic injectors


Wall Render

Cracked Render - Render Repair - direct method from a cartridge nozzle

Cracked Render Injection - using bang-in plastic injectors

Hairline Crack Filler Injection - direct method from a cartridge nozzle

Hairline Crack Filler Injection - using bang-in plastic injectors

Hollow Render - Render Injection - direct method

Hollow Render Injection - using bang-in plastic injectors


Brick Walls

Cracks Down Walls - Crack Filling

Cracks Down Walls - Crack Stitching

Hairline Crack Filler Injection - direct method from a cartridge nozzle

Hairline Crack Filler Injection - using bang-in plastic injectors

Brick Bonding - Brick Adhesive


Stone Walls

Cracks Down Walls - Crack Filling - direct method from a cartridge nozzle

Cracks Down Walls - Injection - using bang-in plastic injectors

Cracks Down Walls - Crack Stitching


Wood

Cracks and Splits in Wood - Filling Timber Cracks and Splits - direct method from a cartridge nozzle

Cracks and Splits in Wood - Filling Timber Cracks and Splits - using bang-in plastic injectors

Missing Sections in Wood - Bonding Bars

Missing Sections in Structural Beams - Timber-Resin Splice Kits

Holes in Wood - Mouldable Putty Filler


Garden Pools and Ponds

Pond and pool leaks - repair holes and crack


Answers to your crack repair and structural problems:

1. INJECTION - to fill a hole or slot by injection - THIXOTROPIC INJECTION KIT - standard and fast set option (for holes and slots in wood, masonry or metal - only moves when pushed - like Vaseline/Swarfega in consistency)


2. POURING - to fill a hole or slot by pouring - STRUCTURAL POURING RESIN - standard and fast set option (for holes and slots in wood, masonry, metal or to form machine bases, plinths - self levelling)


3. HOLE OR CRACK PUTTY FILLING - to fill a hole or split by hand placing - MOULDABLE EPOXY PUTTY - (like window putty in consistency, can be formed, shaped, sanded, painted - totally non-shrink)


4. CONSOLIDATING and PRIMING - Consolidate/seal/prime timber, masonry or plaster - EPOXY PRIMER - (a thin liquid, use alone as a surface sealer or as a primer for Mouldable Mortar on poor surfaces)


5. SEALING and WATERPROOFING - seal concrete floors - EPOXY SEAL COATING - on screed, concrete, slate, tiles, slabs - liquid seal coating - (two liquids, easy to mix and spread - no shrinkage, vapour barrier, totally waterproof, flexes). Available in clear, red and grey ex stock, other colours to order.


6. BONDING AND LAMINATING - to bond floor tiles, slate and timber flooring - ULTRA FLOORING ADHESIVE PASTE - on timber, screed, concrete - filler/adhesive - (two grey creams, easy to mix and spread - no shrinkage, totally waterproof, flexes)


BULK DISCOUNTS AVAILABLE - BUY IN BOXED QUANTITIES

ALL ORDERS GO OUT SAME DAY - GUARANTEED

Epoxy adhesives, together with epoxy putty, epoxy primer and epoxy pouring resins form part of our extensive range of epoxy and polyester resins. They can be used for epoxy floor coating, typically concrete sealing from dampness, epoxy structural repair of holes and cracks in floors, bonding bars and bolts into masonry, (often referred to as chemical anchoring). For further help call us for free technical advice.

See examples of Projects incorporating some of these materials below.


Structural Epoxy Pouring Resin and Pouring Grout

Structural Epoxy Pouring Resin and Pouring Grout - 1.0, 2.5 and 7.5 litre packs

Three part epoxies, supplied as two liquids and separate aggregate, in a large plastic mixing tub.

Designed for pouring into holes and voids in timber and concrete. Ideal for use with Epoxy/Glass, Carbon and Steel bars and plates, as part of a composite, reinforced repair structure.

The Resin version is thinner than the Grout version - to decide which is best for your Project call 01626 872886 .

Example below: Structural Epoxy Pouring Grout in a floor carrier beam strength upgrade, using a top slot

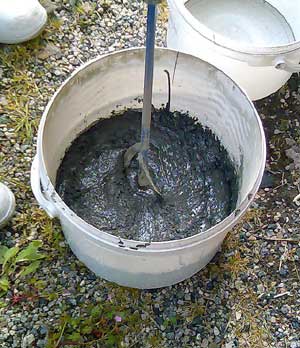

Mixing Structural Epoxy Pouring Resin or GroutPouring Structural Epoxy Poring Resin or GroutUsing Structural Epoxy Pouring Grout to upgrade the strength in a large Carrier Beam

Mixing Structural Pouring Grout. Pouring Structural Pouring Grout. Example: pouring into a beam repair shutter box.

Go Direct to Resins Shopping Page

Example of Structural Epoxy Pouring Resin in use - reinforcement of large decayed beam

A Manor House carrier beam at first floor level had suffered from Wet Rot and Death Watch Beetle over many years, resulting in loss of strength extending from the bearing end. By careful placing of zinc plated steel re-bar (BS4449) to our Design the loss of long grain strength could be made up with multiple connectors, the Structural Epoxy Pouring resin then completing the composite, reinforced repair structure.

Complex beam repair awaiting pouring of resin

High Tensile Zinc Plated Steel bars in a shutter box awaiting resin pourEpoxy Resin being poured into a shutter box, repair a timber Carrier beam

Go Direct to Resins Shopping Page


Structural Epoxy Pouring resin as part of a Timber-Resin Splice Repair

Timber-Resin Splice Kits

We manufacture new Timber Beam Ends and Mid Sections for Rafters, Purlins, Carrier Beams, Ridge Beams, Joists and Glulam Beams.

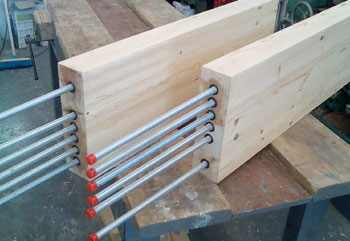

Timber-Resin Splice beams showing Zinc Plated Allthread used to connect new to old timbers

Example 1 - Joist Ends - the joist ends above an occupied flat were badly affected by Dry Rot.

These were replaced with TYPE C Timber-Resin Splice Units which consist of new, pre-manufactured timbers to match the original, with pre-bonded epoxy coated steel re-bar connectors. The pouring resin here is in a two pack, 1 litre pot, for small repairs.

Joist end Timber-Resin Splice repair during pouring.

Pouring Epoxy resin into a joist end repair

Example 2 - Rafter Ends - the rafter ends in a Cardiff Chapel were badly affected by Wet Rot.

These were replaced with TYPE D Timber-Resin Splice Units which consist of new, pre-manufactured timbers to match the original, with pre-bonded epoxy coated steel re-bar connectors. The Structural Epoxy Grout used is a three pack, 2.5 litre unit, also used for pouring

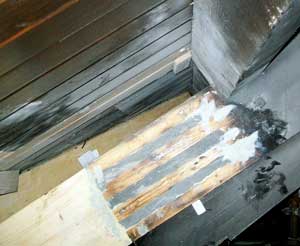

Rafter end Timber-Resin Splice repair after injection.

Timber Resin Splice Type D - after resin injection via side slots

Go Direct to Resins Shopping Page

For more technical information go to: www.timber.org.uk


Thixotropic Injection Resin
Thixotropic Injection Resin - 400cc and 1.0 litre

A two part thixotropic epoxy resin, supplied as two stiff gels, in mixing pots suitable for directly filling plastic disposable cartridges. Designed for injection of cracks, splits and voids in timber and concrete. Ideal for use with Epoxy/Glass, Carbon and Steel bars and plates, as part of a composite, reinforced repair structure. Thixotropic Resin is available as standard and Slow Set versions. Vividly coloured parts make for easy mixing.

Rapid Setting version available - Thixo Rapid - hard in 6- 8 minutes.

Mixing Thixotropic Resin - 400cc cartridge in standard skeleton gun.

Mixing Thixotropic In jection Resin 400ccInjection extension tube shown on a 400cc cartridge of Thixotropic Injection Resin

Go Direct to Resins Shopping Page


Example of Thixotropic Epoxy Resin in use - injection of wall slots and cracks.

Vertical or stepped cracking in brickwork can be reinforced using Epoxy Glass or Stainless Steel Bars embedded in Epoxy Resin or Polymer Modified Cements. In this example Thixotropic Injection Resin is being laid into a 'stitch' slot, ready for a bar to be embedded.

Injecting Thixotropic Resin into a wall slot for 'stitching'

Go Direct to Resins Shopping Page
